Can't wait several years for a  full house Chen pistol? Or have stock pistol in your collection you'd like to enhance? Here is a great opportunity to get some highly sought after Stan Chen Custom machine work done on YOUR stock 1911. On a limited basis, I am now offering select custom machine work à la carte. This is a great way to add performance enhancements and exquisite custom touches to your pistol. This is world-class custom machine work.  Each project is individually set up and cut personally by Stan, to the very highest standards of precision and quality.

Fast Turnaround

Depending on refinishing options, you can have your pistol back to you in about 10- 12 weeks, not years. This is truly rare for unique, top-flight custom machine work for 1911 pistols.

Prices and details can be found below.

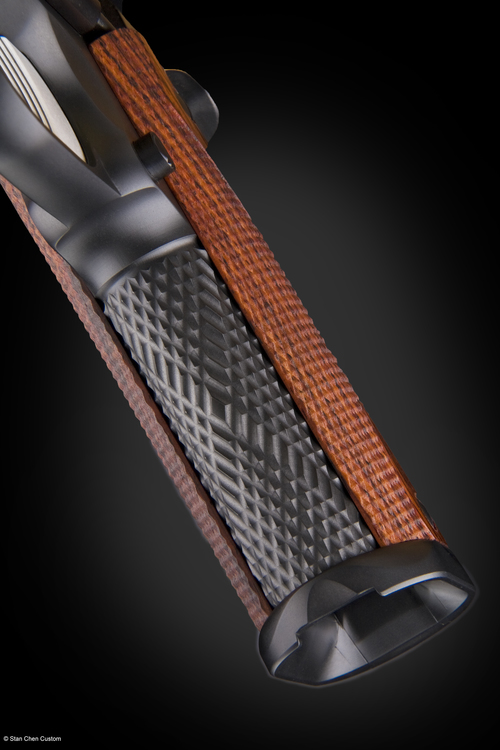

Chen ProTrac Checkering


Called Progressive Traction Checkering™ (or ProTrac™ for short), this frontstrap texturing is an exclusive innovation from Stan Chen Custom. As the name implies, this distinctive texture is specifically designed to give the 1911 shooter a degree of traction which is proportional to the amount of grip force applied. So what you have is rock solid traction in rapid fire, but if you have to flip the pistol to hit the mag release for reloads, it just slides smoothly in your hand when you momentarily let up on the grip.

Because of the wide spacing of the lines, the individual diamonds are larger and more robust than traditional diamonds. Yet, they are NOT overly abrasive because the diamonds have a more gradual side profile and the depth at which they are cut.

ProTrac™ Checkering is available for the front strap of your stock 1911 frame. Included is a sweeping high cut of the fronstrap and trigger guard, which also gets your hand as close as possible to the axis of the bore for increased recoil control. It is hand finished to produce the greatest comfort and graceful, flowing lines.

ProTrac™ is also offered on a Stan Chen mainspring housings which can be included within the machining package. Prices and details can be found below.  Click here for more information

*Please note, on Stan's full house pistols, the ProTrac checkering on the rear wraps around the mainspring housing onto the sides of the pistol frame. Customer pistols sent in for this service will be checkered on the mainspring housing only, due to extreme variations among pistol manufacturers.

Click here to order Stan's Custom Machining

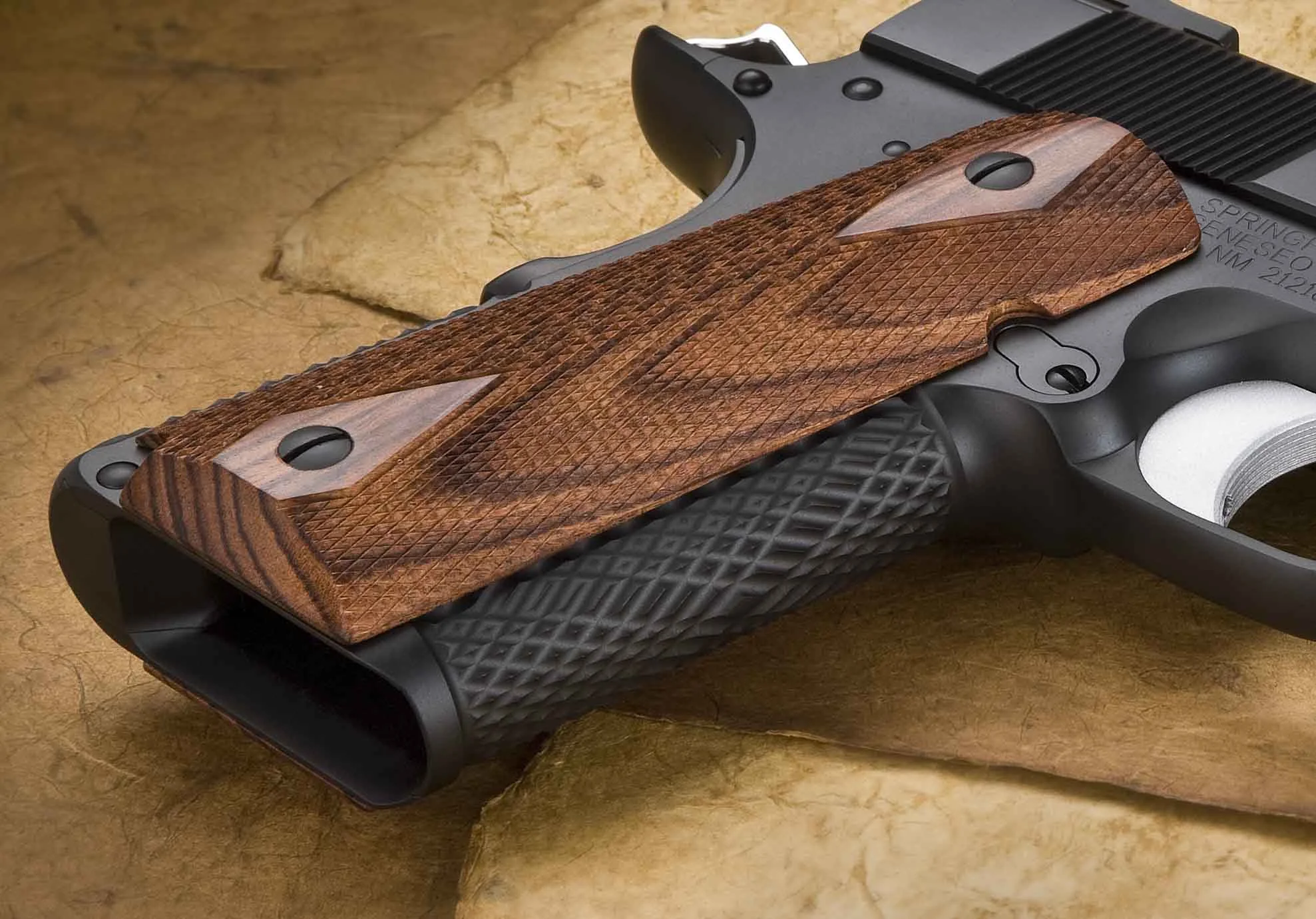

Photo: Christopher Marona Photography

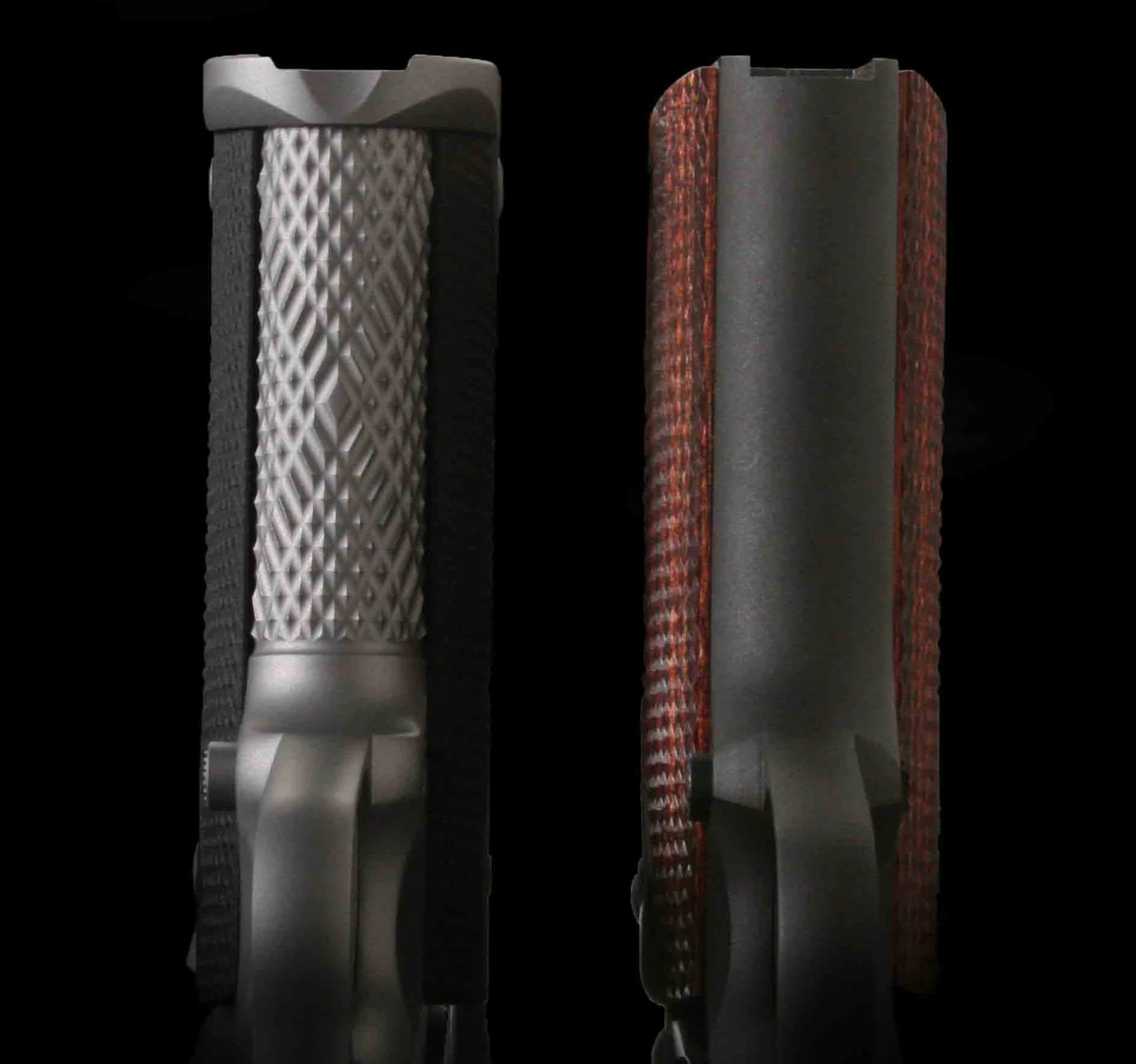

Photo: Christopher Marona Photography

Photo: Christopher Marona Photography

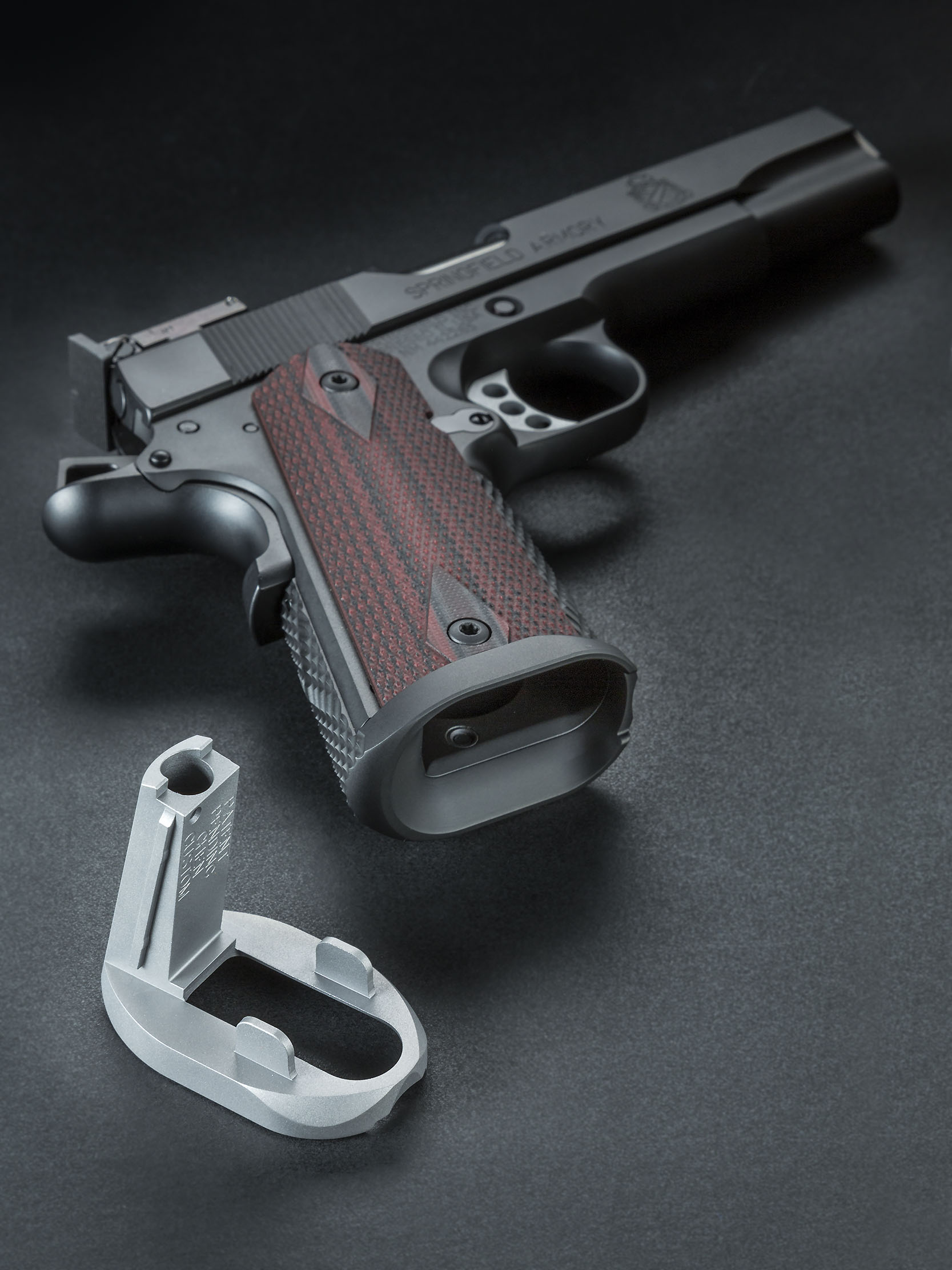

CHEN MAGWELL GEN2 INSTALLATION



The Gen2 is machined as one piece, integral with the Mainspring Housing. The entire bottom of the full size pistol frame is shortened by .300”, by machining, to accommodate the magwell. No length or width is added to the pistol. Concealability, portability, and the overall handling of the pistol is not compromised. If you can conceal a standard 1911, you will be able to conceal a Chen Magwell’ed 1911 with the exact same ease. The Chen Magwell Gen2 is attached to the pistol frame via the Mainspring Housing Pin, which is relocated from its original position.

The Chen Magwell Gen2 adds two Side Impact Reinforcement Tabs, which snugly engage against the sides of the pistol frame, and provide a tremendous amount of lateral support to the magwell so it will not twist from any side impact.

The Chen Magwell Gen2 allows for the removal of stuck magazine by providing access to the toe of the magazine so that the magazine can be forcefully extracted in the event it becomes stuck in the pistol. This is made possible by 1.) front magwell geometry which has been considerably reduced compared to traditional weld-on magwells and 2.) a pronounced access notch has been machined in front.

The Chen Magwell Gen2 delivers speed and consistency while reloading under stress. Using sophisticated CAD design and CAM driven machining, the magwell opening is opened up as wide as possible without adding bulk. The entry angle is optimized for the smoothest reloads possible. The Chen Magwell Gen2 is custom installed, contoured, blended, and dehorned. A generous roundbutt is machined and hand sculpted into the part itself, enhancing shooting and carry comfort. The proprietary Chen BevelBlock™ is a block of extra material in a key location at the rear of the magwell, which allows a seamless, gap-free blend with the pistol.

Our custom installation includes a dramatic, custom blend of the magwell into the pistol frame itself.  This makes the transition from magwell to pistol even more effortless in function and more seamless in appearance. The blend goes as far up into the pistol as possible, assuring the most efficient entry angle.

The installation is completed with custom fitting of double diamond G10 grips which are made for us by our friends at VZ Grips.  Please note if you wish to change grips in the future, VZ Grips will soon supply the "Chen Magwell Cut" as an option.  They will come shortened for the magwell, with relief cuts for the Side Impact Reinforcement Tabs, and just a little extra material for final fitting.

The Chen Magwell Gen2 Installation service does NOT include our ProTrac™ checkering treatment. If you desire ProTrac™ checkering as well, please see the Gen2 and ProTrac™ Package below.

Pistols must be stainless steel or carbon steel. Currently we are not accepting aluminum alloy frames. Nickel plated firearms must have the nickel finish stripped/removed prior to machining. Bobtailed frames are not suitable.

The following brands are suitable for our machining services: Colt, Springfield, Dan Wesson, Kimber, Wilson, Nighthawk, Ruger, Remington, JEM, and Caspian, with full length grip frames (i.e. Government or Commander/Champion sized). If your frame is not on this list, please drop me an email.

Click here to order Stan's Custom Machining

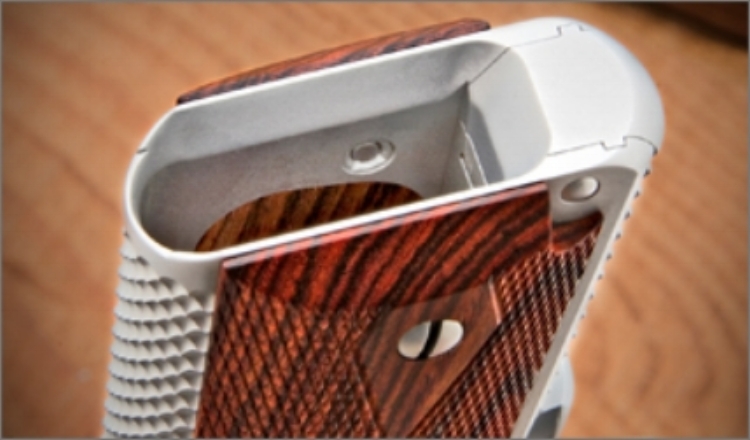

Chen Deluxe Maxbevel

Magazine well with Chen Deluxe Maxbevel treatment


The Chen Maxbevel™ treatment transforms the bottom of your pistol into an ergonomic, elegant masterpiece of effectiveness. The Chen Maxbevel™ treatment gives the largest available magwell bevel without an add on part.

The Chen Maxbevel™ is seamlessly cut into the mainspring housing as far to the rear as possible for reliably fast reloads. This is done using our unique, proprietary Chen Mainspring Housing. The Chen MSH allows for this seamless cut to be performed without the unsightly gap which is common to other attempts at enlarging the bevel to the rear with a standard mainspring housing.

Magazine well without Chen Deluxe Maxbevel treatment

Magazine well without Chen Deluxe Maxbevel treatment

Beyond just enlarging the opening, the entire area is hand blended and dehorned into an ergonomic, flowing unit. The front of the mag well is cut and shaped to eliminate the sharp corners on stock pistols, which can cut the shooter during fast reloads.

RoundButt                                                                                                        As part of the Maxbevel™ treartment, your pistol will receive our "RoundButt" treatment, which provides a significant increase in comfort while both shooting the pistol, and carrying it concealed. To accomplish this, the back heel of the pistol, to include the frame and mainspring housing, is generously blended and radiused into an integrated, comfortable contour. Combined with our ProTrac™ and HighCut, the Roundbutt is part of what makes the pistol feel as though it "melts" comfortably in your hand. This combination is available as part of the Chen Maxbevel™ and ProTrac™ Package, see below.



Click here to order Stan's Custom Machining

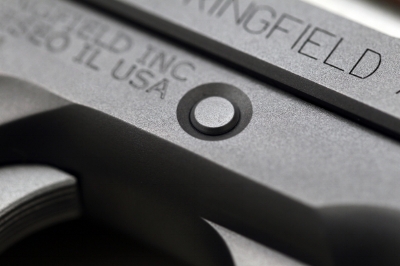

Modify Slide Stop



The slide stop pin is shortened to sit flush with the frame. This prevents the slide stop from being inadvertently pushed out of the frame while the shooter has his finger rested along the side of the pistol during administrative functions such as loading or press checking the pistol.

To aid in the reassembly of the pistol, the slide stop hole of the frame is precisely countersunk, and the end of the slide stop pin is chamfered.

Click here to order Stan's Custom Machining


Photo: Christopher Marona Photography

Photo: Christopher Marona Photography

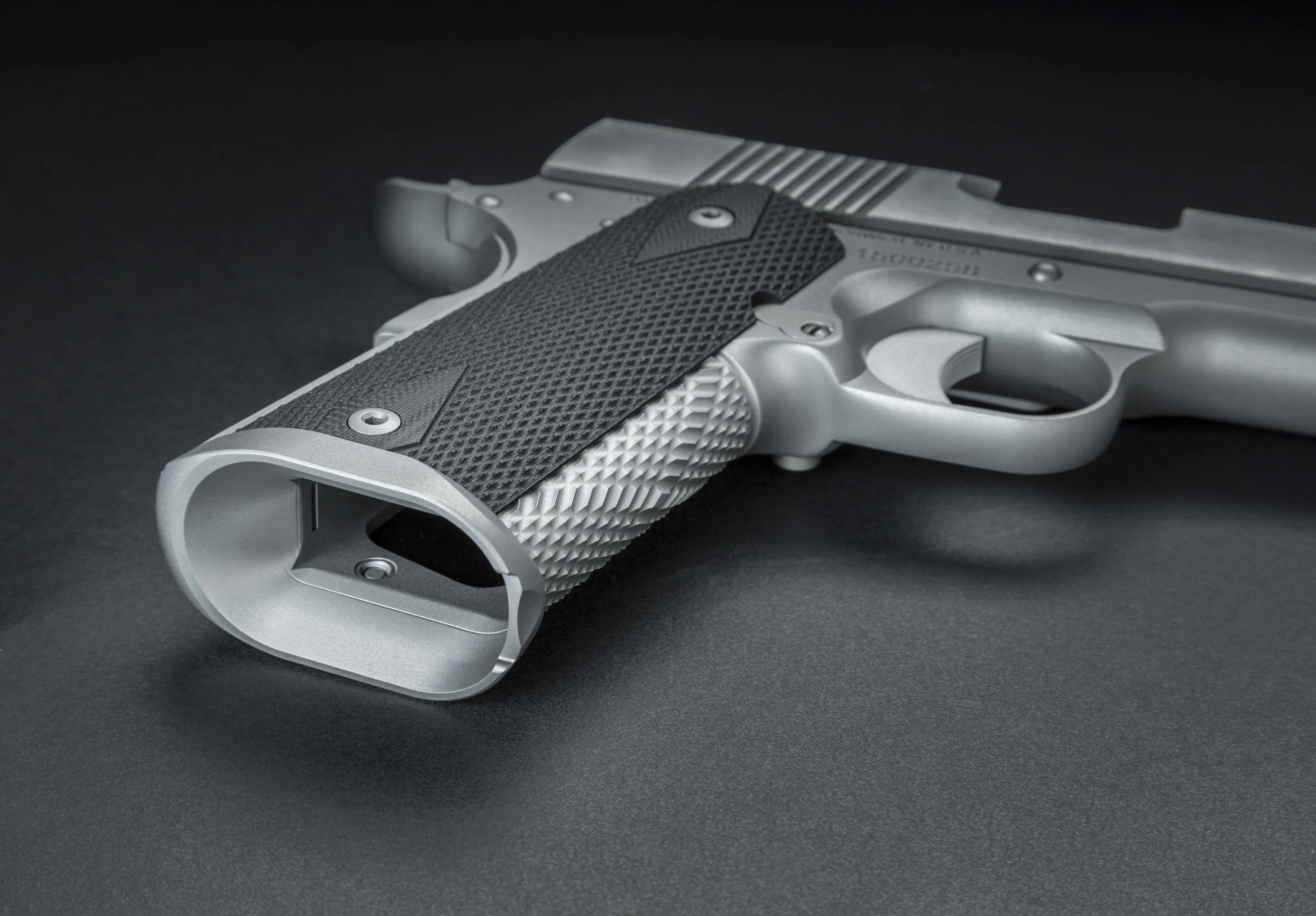

the chen magwell gen2 and protrac package



The Chen Magwell Gen2 and ProTrac package includes the following:

Installation and custom blend of the Chen Magwell Gen2 (Magwell included)
ProTrac™ checkering of the frontstrap
High Cut frontstrap
ProTrac™ checkering of the Chen Magwell Gen2 mainspring housing

Pistols must be stainless steel or carbon steel and in stock, unmodified condition. Currently we are not accepting aluminum alloy frames. Nickel plated firearms must have the nickel finish stripped/removed prior to machining.

Of course, the frontstrap must be smooth and not have any checkering or other frontstrap treatment already cut. Bobtailed frames are not suitable.

The following brands are suitable for our machining services: Colt, Springfield, Dan Wesson,  Kimber, Wilson, Nighthawk, Ruger, Remington, JEM, and Caspian, with full length grip frames (i.e. Government or Commander/Champion sized). If your frame is not on this list, please drop me an email.

Click here to order Stan's Custom Machining

Photo: Christopher Marona Photography

Photo: Christopher Marona Photography

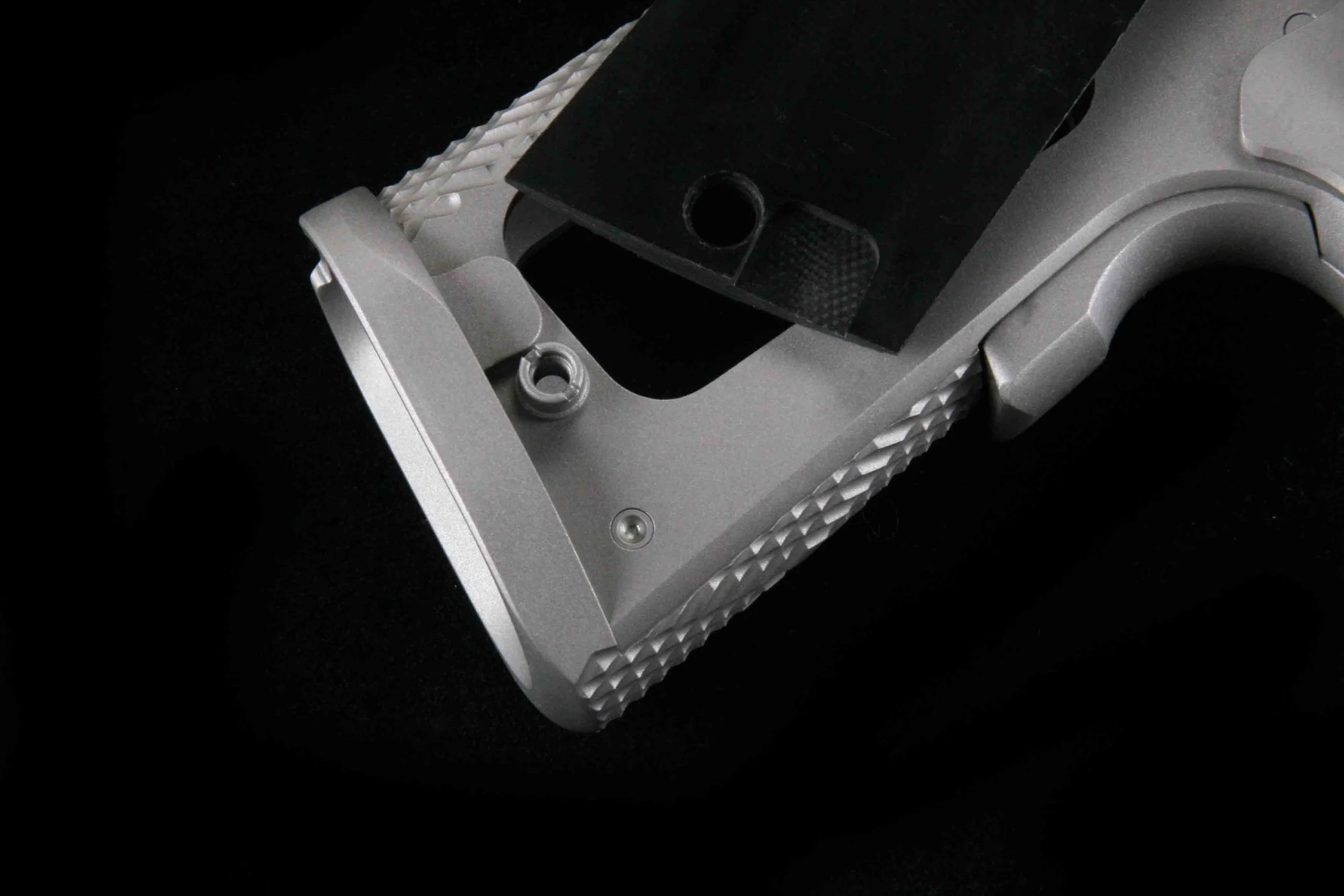

THE CHEN DELUXE MAXBEVEL™ AND PROTRAC™  PACKAGE



The Chen Maxbevel™ and ProTrac™  Package transform the lower end of your stock 1911. The Maxbevel™ treatment is combined with our ProTrac™  checkering on the frontstrap and Chen Maxbevel™ Mainspring Housing, the Roundbutt, and the Chen signature HighCut. The Chen Maxbevel™ and ProTrac™ Package will make the pistol feel as though it "melts" comfortably in your hand, meanwhile giving you the traction and control you need.

Pistols must be stainless steel or carbon steel. Currently we are not accepting aluminum alloy frames. Nickel plated firearms must have the nickel finish stripped/removed prior to machining. Bobtailed frames are not suitable.

The following brands are suitablefor our machining services: Colt, Springfield, Dan Wesson, Kimber, Wilson, Nighthawk, Ruger, Remington, JEM, and Caspian, with full length grip frames (i.e. Government or Commander/Champion sized). If your frame is not on this list, please drop me an email.

Click here to order Stan's Custom Machining


Details



Each month, I carve out time in my schedule, to allow for a limited number of slots available for custom machine work. Approximate work dates for the upcoming month are posted on our online store. Pistols must be received in my shop before the work date. Only the machine work listed here can be performed, as I simply don't have time in my schedule to tune or set up customer pistols on an à la carte basis (i.e. reliability, action work...).

To order custom machine work for your stock 1911, please follow the link to our store. You will find shipping information there as well.

Suitable pistols
Pistols must be stainless steel or carbon steel and in stock, unmodified condition. Currently we are not accepting aluminum alloy frames. Nickel plated firearms must have the nickel finish stripped/removed prior to machining.

The following brands are suitable: Colt, Springfield, Dan Wesson,  Kimber, Wilson, Nighthawk, Ruger, Remington, STI, Ed Brown, Sig Sauer, JEM, and Caspian, with full length grip frames (i.e. Government or Commander/Champion sized). If your frame is not on this list, please drop me an email.

Of course, the frontstrap must be smooth and not have any checkering or other frontstrap treatment already cut. Bobtailed frames are not suitable.

Refinishing
There are simply a myriad of refinishing options out there to meet every need and budget. After your pistol has been machined, you can opt to have it

1.  Refinished and returned to you ready for action.  For this program, we offer a satin matte finish on stainless steel pistols, or a satin matte blue for blued pistols.  Polish work on frame/slide flats is not available directly from us.  *See note below regarding pistols which cannot be blued*

OR

2. Returned to you "in the white" for final finishing by the refinisher of your choice.  The machined surfaces are given a light bead blast.

Stan Chen Custom is partnered with Glenrock Blue for bluing.  Glenrock Blue  offers Traditional Bluing and Cerakote.  They can also do fine grade polish work on your frame and slide flats, if desired. We have a great relationship with our friends at Glenrock, Stan Chen Custom machined pistols will received 15% off.



Click here to order Stan's Custom Machining

Pricing



$375

$190



$450



$525





$250

$95



$850





$690





$1,270









$1,270







$1,095







Machining Options

ProTrac Checker Frontstrap and High Cut

ProTrac Checker Mainspring Housing
(includes custom fit mainspring housing)

Gen2 Magwell Install
(includes Chen Magwell Gen2, NO checkering or high cut)

Gen2 Magwell Install with Mainspring Housing Checkered By Pete Single
(includes Chen Magwell Gen2, checkered at 20, 25, or 30 lines per inch)

Chen Deluxe Maxbevel Treatment
(includes Chen Maxbevel mainspring housing, and roundbutt/ blend rear of frame)

Modify Slide Stop

Chen Magwell Gen2 and ProTrac Package
(includes installation and custom blend of the Chen Magwell Gen2, Protrac™ checkering of frontstrap and magwell mainspring housing, and High Cut frontstrap)

Chen Deluxe Maxbevel and ProTrac Package
(includes ProTrac™ checkering of frontstrap, High Cut frontstrap, ProTrac™ checkering of mainspring housing (includes custom fit mainspring housing), and Chen Deluxe Maxbevel™ treatment)

Springfield R.O. Package
(includes installation and custom blend of Gen2 Magwell, ProTrac™ checkering of front strap and Gen2 mainspring housing, High cut frontstrap, Shorten slide stop and countersink slide stop pin hole, Recessed barrel crown and countersink barrel bushing, Line top of slide along radius, and VZ Double Diamond G10 grips custom fit to magwell)

Colt XSE Package
(includes installation and custom blend of Gen2 Magwell, ProTrac™ checkering of front strap and Gen2 mainspring housing, High cut frontstrap, Shorten slide stop and countersink slide stop pin hole, Recessed barrel crown and countersink barrel bushing, Line top of slide along radius, and VZ Double Diamond G10 grips custom fit to magwell)

Dan Wesson Heritage Package
(includes installation and custom blend of Gen2 Magwell, ProTrac™ checkering of front strap and Gen2 mainspring housing, High cut frontstrap, Shorten slide stop and countersink slide stop pin hole, Recessed barrel crown and countersink barrel bushing, and VZ Double Diamond G10 grips custom fit to magwell)






$140

$75



$40



$185

$140



$95



Refinishing Options


Stainless steel pistols- satin matte finish over entire pistol

Stainless steel pistols- satin matte finish lower end only

Stainless steel pistols- satin matte finish slide only

Carbon steel pistols- satin matte blue finish over entire pistol

Carbon steel pistols- satin matte blue finish lower end only

Carbon steel pistols- satin matte blue finish slide only

*Note that certain models of 1911s which appear to be black (most notably Kimber) are actually a mixture of stainless steel and carbon steel parts. As such, these pistols cannot be blued. An alternate coating such as Cerakote should be applied.

*Note that certain models of stainless steel 1911s (such as Ruger),  have black parts such as slides stops, thumb safeties, and grip safeties. These black parts will NOT be included in the satin matte stainless finishing. They will remain as they came to us.
